TDA7296

Information - Help
ID = 67731

Country:
France
Brand: Thomson (marque), Thomson-Houston (CFTH); Paris
Tube type:  IC - Integrated Circuit   Power/Output
Identical to TDA7296

Base Wires
Description

Aufbau/Content: IC (>11 Trans., __ Widerst., __ Dioden);
Form/Case/Outline: Multiwatt-15 (TDA7296) | Multiwatt15H (TDA7296HS);
Type/Application: DMOS Audio Power Amplifier max. 60 W Class AB @ 4...8 Ω, with Mute/Stand-by;
Daten/electr.data: Vcc: +/- 10...35 V; Iccq: 20...65 mA; Io max: 5 A; THD: <0.1 %; Pd: 50 W; t op: 0...70 °C;
-


Dimensions (WHD)
incl. pins / tip
20 x 18 x 5 mm / 0.79 x 0.71 x 0.20 inch
Weight 5 g / 0.18 oz
Information source - - Manufacturers Literature   ST

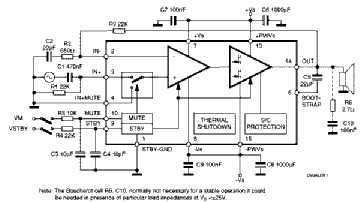

TDA7296: STM
Günther Stabe † 19.8.20
    More ...
tda7296_s.png TDA7296: STM
Günther Stabe † 19.8.20

TDA7296: STM
Günther Stabe † 19.8.20
