TEA6420

Information - Help
ID = 63378

Country:
France
Brand: Thomson (marque), Thomson-Houston (CFTH); Paris
Tube type:  IC - Integrated Circuit   Audio Frequency
Identical to TEA6420

Base Wires
Description

Aufbau/Content: IC (__ Trans., __ Widerst., _ Dioden, _ Kond.);
Form/Case/Outline: SDIP-24 (TEA6420[/L])| SO28 (TEA6420D);

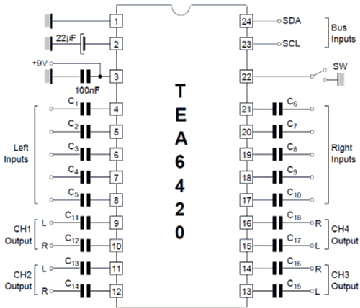

Application/Type: I²C-bus controlled Audio Matrix Switch (5 Stereo Inputs, 4 Stereo Outputs);
Daten/electr.data: Vs: 8...10 V; Is: 5 mA; t op: 0...70 °C.
-


Dimensions (WHD)
incl. pins / tip
23 x 7 x 7 mm / 0.91 x 0.28 x 0.28 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature   STM SGS Thomson Microelectronics

TEA6420: ST
