TT21
|
Country:
Great Britain (UK)
|
|
| Identical to |
TT21
= 7623
|
| Similar
Tubes |
Heater different:
TT22
|
| Base |
Octal (Int.Octal, IO) K8A, USA 1935
Top contact with a cap.
|
| Filament |
Vf 6.3 Volts / If 1.6 Ampere / Indirect / Specified voltage AC/DC |
| Description |
Designed for use as RF amplifiers with full power rating up to 30MHz. Also useful as audio amplifiers and pulse modulators.
Pa <37.5W for commercial service or <45W for intermittent or amateur service.
Va<1250, Ik<230mA.
Typical Output Powers:
RF: 80W SSB class AB1;
for Audio in push-pull: 100 W (Push-Pull 43% tap,Ultra-Linear Connected).
|
Dimensions (WHD)
incl. pins / tip |
52 x 131 x 52 mm / 2.05 x 5.16 x 2.05 inch |

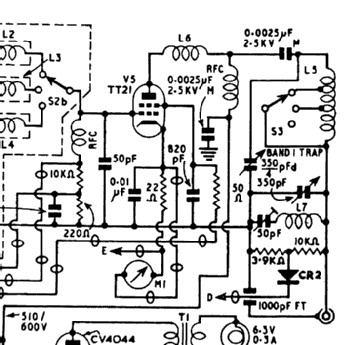

TT21: Radio Communication Handbook
Antonio Rabitti
|
TT21: GEC data sheet
Bruce Taylor
|
Just Qvigstad
|
|
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):3
