TY86F

Information - Help
ID = 81104

Country:
Great Britain (UK)
Brand: Mullard Radio Valve Co. Ltd.;
Tube type:  High-vacuum Rectifier
Identical to TY86F
Similar Tubes
Heater different:
  EY86

Base Noval, 9 pin miniature (USA pico-9) B9A Top contact with a cap.
Was used by Radio/TV-reception etc.
Filament Vf 7.4 Volts / If 0.077 Ampere / Half indirect / Specified voltage AC/DC
Description

TY86F – 7.4 V, 77 mA heater version of the EY86 18-kV CRT EHT rectifier, for use as a hotfix in early-production Ferguson Radio Corporation TV receivers 306T and 308T where the horizontal-output transformer produced excessive heater voltage which destroyed the originally fitted EY86s.[Wikipedia]

306T receiver with serial numbers: 1001 to 93150
308T receiver with serial numbers: 1001 to 26530


Dimensions (WHD)
incl. pins / tip
20 x 73 x mm / 0.79 x 2.87 x inch
Information source - - Manufacturers Literature   Mullard Data-Book 1963/64

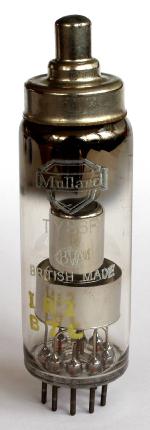

TY86F: AH eigene Sammlung
Alexander Hofer


TY86F: AH eigene Sammlung
Alexander Hofer


TY86F: Mullard Data-Book, 1963/64
Anonymous 15 Collector


from Just Qvigstad
