U2400B

Information - Help
ID = 41544

Country:
Germany
Brand: Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Tube type:  IC - Integrated Circuit   Power-supply
Identical to U2400B

Base SPECIAL TUBEBASE in general
Description

Monolithic integrated circuit for automatic NiCd accu charging.
-


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
20 x 7 x 8 mm / 0.79 x 0.28 x 0.31 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature   Telefunken electronic

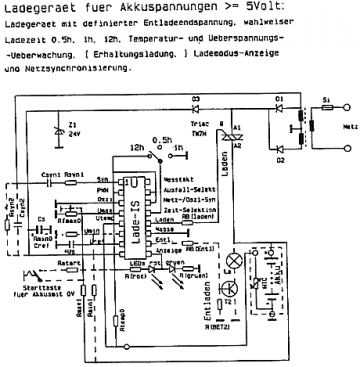

U2400B: Telefunken
Günther Stabe † 19.8.20

u2400b_s.gif U2400B: Telefunken
Günther Stabe † 19.8.20

U2400B: Telefunken
Günther Stabe † 19.8.20

Usage in Models 1= 1992?

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):1
