V311

Information - Help
ID = 21006

Country:
France
Brand: Mazda (tubes), Mazda-Belvu, Compagnie des Lampes; Paris
Tube type:  Half-Wave Vacuum Rectifier   Power-supply

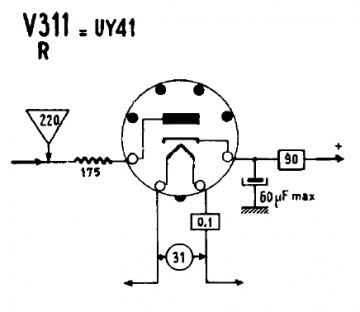

Identical to V311 = UY41
First year 1947 Tube leaflet collection E.Erb Analysis by original leaflets

Base Rimlock base B8A
Filament Vf 31 Volts / If 0.1 Ampere / Indirect / Series, AC/DC
Dimensions (WHD)
incl. pins / tip
22 x 76 x mm / 0.87 x 2.99 x inch
Literature Taschenbuch zum Röhren-Codex 1948/49
  V311: Internet
Miguel Angel Trujillo-Rodriguez

V311: M.N.
Michael Niermann


V311: RTT Schwandt
Günther Stabe
