SE1001

Information - Help
ID = 46624

Country:
United States of America (USA)
Brand: Common type USA tube/semicond.
Tube type:  Transistor   RF/IF-Stage
Identical to SE1001
Similar Tubes
Normally replaceable-slightly different:
  AT318 ; AT319 ; AX1101 ; AX1119 ; BF199 ; BF224 ; BF311 ; TT1001
First Source (s)
Mar.1967 : -- Collector info (Sammler)
Base Wires
Was used by Radio/TV-reception etc.
Description NPN silicon planar transistor intended as TV IF amplifier.
-
Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip		 6 x 6 x 5 mm / 0.24 x 0.24 x 0.20 inch
Weight 1 g / 0.04 oz
Information source -- Collector info (Sammler)   TVT 1979/80 ECA, TTT Steidle 1981

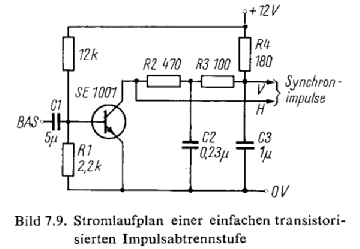

SE1001: Fernsehempfängertechnik S.181
Egon Strampe
to106_65.gif SE1001: TTT Steidle 1981
Günther Stabe † 19.8.20
Usage in Models 2= 1964 ; 1= 1965? ; 17= 1965 ; 2= 1966?? ; 10= 1966 ; 1= 1967? ; 7= 1967 ; 1= 1968?? ; 11= 1968 ; 1= 1969? ; 14= 1969 ; 1= 1970? ; 6= 1970 ; 5= 1971 ; 2= 1973 ; 1= 1974? ; 1= 1974
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):83
