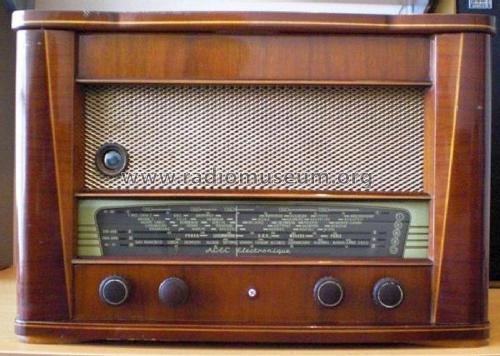

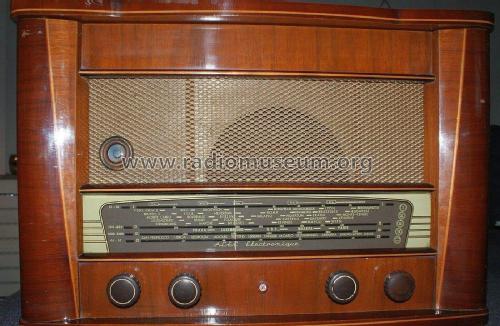

521; ACEC, Ateliers de (ID = 1768247) Radio
ACEC, Ateliers de: 521 [Radio] ID = 1768247 1400x1175
Select picture or schematic to display from thumbnails on the right and click for download.
For model 521, ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi:
Picture courtesy of guest Leo Metz

Country:  Belgium
Manufacturer / Brand:  ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EF41 EBC41 EL41 EM4 AZ41
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 130; 145; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: 521 - ACEC, Ateliers de
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 585 x 395 x 375 mm / 23 x 15.6 x 14.8 inch
Source of data -- Original prospect or advert

Model page created by Hugo Sneyers. See "Data change" for further contributors.



All listed radios etc. from ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi
Here you find 233 models, 225 with images and 38 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
