Super Musical 55

Super Musical 55; ACER A.C.E.R. / (ID = 253590) Kit

Super Musical 55; ACER A.C.E.R. / (ID = 253592) Kit
Super Musical 55; ACER A.C.E.R. / (ID = 1559148) Kit
Use red slider bar for more.
Super Musical 55; ACER A.C.E.R. / (ID = 1559148) Kit
ACER A.C.E.R. /: Super Musical 55 [Kit] ID = 1559148 850x638
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super Musical 55, ACER (A.C.E.R.) / Omnium Commercial d'Électricité et de Radio; Rueil, Paris:
Photo du constructeur Acer

Country:  France
Manufacturer / Brand:  ACER (A.C.E.R.) / Omnium Commercial d'Électricité et de Radio; Rueil, Paris
Year: 1954 Category: Kit (Parts plus instruction) or building instructions only
Valves / Tubes 5: EF85 EABC80 EL84 EZ80 EM34
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Super Musical 55 - ACER A.C.E.R. / Omnium
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 495 x 310 x 215 mm / 19.5 x 12.2 x 8.5 inch

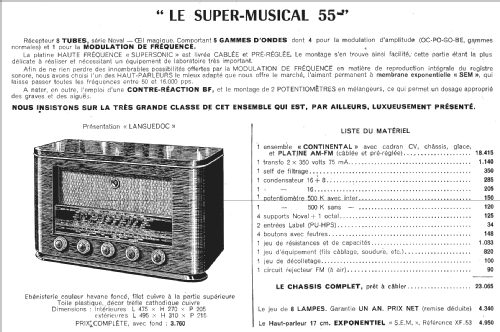

Mentioned in -- Original prospect or advert

Model page created by Peter Hoddow. See "Data change" for further contributors.



All listed radios etc. from ACER (A.C.E.R.) / Omnium Commercial d'Électricité et de Radio; Rueil, Paris
Here you find 66 models, 59 with images and 44 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
