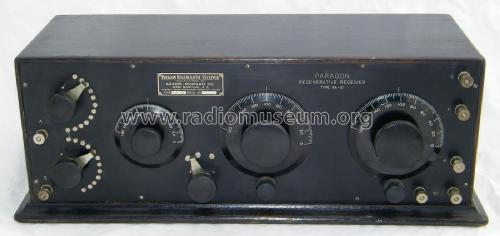

Paragon RA-10

Paragon RA-10; Adams-Morgan Co. (ID = 947757) mod-pre26

Paragon RA-10; Adams-Morgan Co. (ID = 947546) mod-pre26
Paragon RA-10; Adams-Morgan Co. (ID = 2380589) mod-pre26 Paragon RA-10; Adams-Morgan Co. (ID = 2380593) mod-pre26
Paragon RA-10; Adams-Morgan Co. (ID = 2380591) mod-pre26 Paragon RA-10; Adams-Morgan Co. (ID = 2380594) mod-pre26
Paragon RA-10; Adams-Morgan Co. (ID = 1878568) mod-pre26 Paragon RA-10; Adams-Morgan Co. (ID = 947547) mod-pre26
Paragon RA-10; Adams-Morgan Co. (ID = 1878569) mod-pre26 Paragon RA-10; Adams-Morgan Co. (ID = 1878570) mod-pre26
Paragon RA-10; Adams-Morgan Co. (ID = 383454) mod-pre26 Paragon RA-10; Adams-Morgan Co. (ID = 383456) mod-pre26
Use red slider bar for more.
Paragon RA-10; Adams-Morgan Co. (ID = 2380589) mod-pre26
Adams-Morgan Co.: Paragon RA-10 [mod-pre26] ID = 2380589 1400x1048
Select picture or schematic to display from thumbnails on the right and click for download.
For model Paragon RA-10, Adams-Morgan Co. (AMCO); Upper Montclair, N.J:
Collection privée (réf.: 112, 1999)

Country:  United States of America (USA)
Manufacturer / Brand:  Adams-Morgan Co. (AMCO); Upper Montclair, N.J
Year: 1920 Category: Radio module pre 1926 (not a part, not a key)
Main principle RF-Circuit or wave trap (separate, can also be an antenna with amp.); Reaction
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Paragon RA-10 - Adams-Morgan Co. AMCO; Upper
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 530 x 190 x 210 mm / 20.9 x 7.5 x 8.3 inch
Notes

This is a tuner having provisions for regeneration, provided a suitable audion detector is connected. The RA-10 itself has no tube. It was offered in conjunction with the DA-2 Detector-Amplifier, but it would work with any vacuum-tube detector.

Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Price in first year of sale 85.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Radio Manufacturers of the 1920s, Vol 1 (William B.Duck Catalog No.16 (1921))
