19A11SN Ch= 19A1

• Country
• United States of America (USA)

• Manufacturer / Brand
• Admiral (brand) Continental Radio & Television Co.; Chicago, IL

• Year
• 1948 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 124416

• • alternative name: Continental Radio & TV

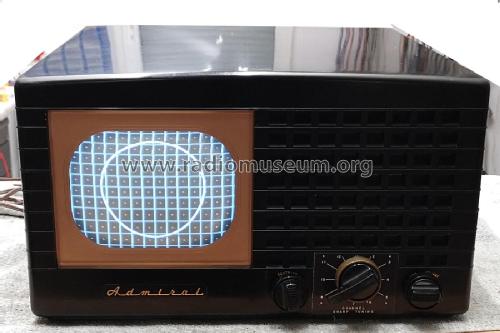

• Picture

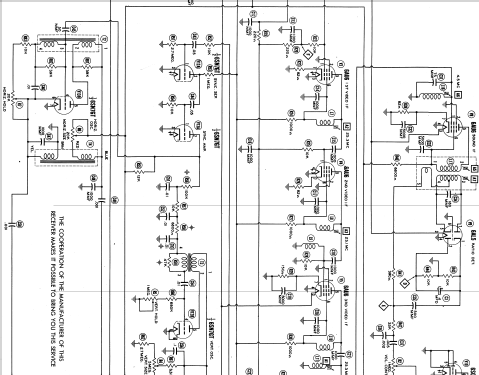

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• 6AG5 6J6 6AU6 6AU6 6AU6 6AL5 6AU6 6AU6 6AL5 6SQ7 6AS5 6SN7GT 6SN7GT 6SL7GT 6V6GT 1B3GT 5Y3GT 7JP4

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 19A11SN Ch= 19A1 - Admiral brand Continental

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 18 x 9.5 x 16 inch / 457 x 241 x 406 mm

• Notes

• 7 " b/w TV with US standard VHF tuner.

  Round tube b/w TV, 12 channel US VHF tuner.

  Television Receiver Channels 2 through 13
  19A11 Plastic Mahagony
  19A12 Plastik Ebony
  19A15 Wood Walnut

  Also V17 can be 5U4G instead of 5Y3GT.

• Mentioned in
• Photofact Folder, Howard W. SAMS (497-2 Set 59 Folder 2)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
