• Country
• Great Britain (UK)

• Manufacturer / Brand
• Advance Electronics / Components Ltd.; Hainault, Wrexham

• Year
• 1955 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 111112

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes

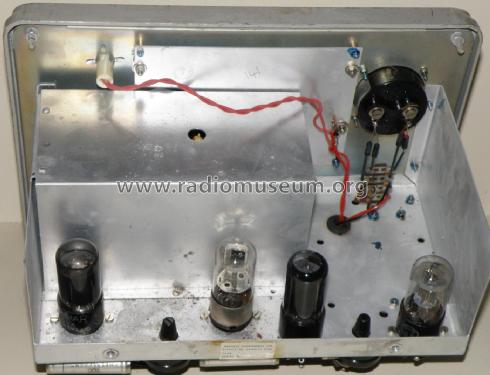

• 6V6GT 6SN7GT 6J5GT EZ35

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 105-125; 210-250 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

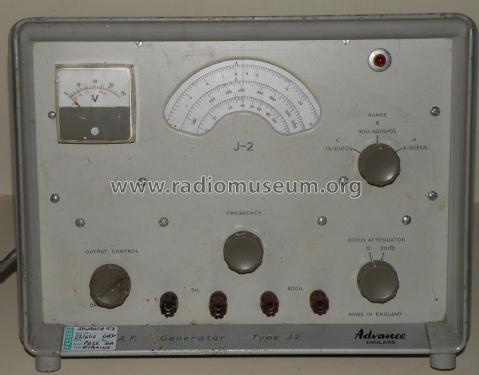

• Model: L.F. Signal Generator J-2 - Advance Electronics /

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 14 x 10 x 8 inch / 356 x 254 x 203 mm

• Notes
• AF-Generator 15 to 50000 Hz in 3 ranges, 5 and 600 Ohm output.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
