• Year
  • 1952/1953
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 256

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 452/10700 kHz
  • Tuned circuits
  • 8 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • AC/DC-set / 110-240 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org

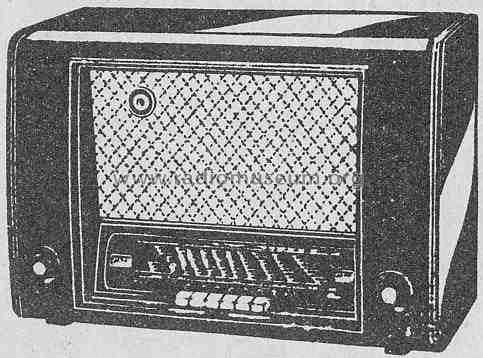

  • Model: 1062GWU - AEG Radios Allg.Elektricitäts-
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 610 x 420 x 270 mm / 24 x 16.5 x 10.6 inch
  • Notes
  • KW-Lupe, variable Bandbreite.
  • Net weight (2.2 lb = 1 kg)
  • 11.5 kg / 25 lb 5.3 oz (25.33 lb)
  • Price in first year of sale
  • 404.00 DM
