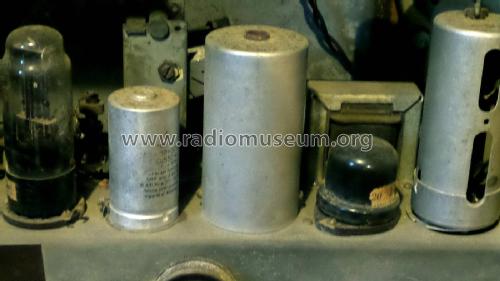

AEG Radios Allg.: 4311aGW [Radio] ID = 2168625 950x497
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4311aGW, AEG (Radios) Allg.Elektricitäts-Ges.:
Thanks for the photo Mr. Ferenc Tóth!

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1941–1943 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH11 UBF11 UCL11 UY11 U2410P
Main principle Superheterodyne (common); ZF/IF 473 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 4311aGW - AEG Radios Allg.Elektricitäts-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 560 x 320 x 250 mm / 22 x 12.6 x 9.8 inch
Notes Info Paolo Ansaloni: materiale: legno forma: parallelepipedo
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + Schenk


All listed radios etc. from AEG (Radios) Allg.Elektricitäts-Ges.
Here you find 805 models, 692 with images and 412 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
