659GWK

659GWK; AEG Radios Allg. (ID = 84777) Radio 659GWK; AEG Radios Allg. (ID = 84779) Radio
659GWK; AEG Radios Allg. (ID = 84780) Radio
Use red slider bar for more.

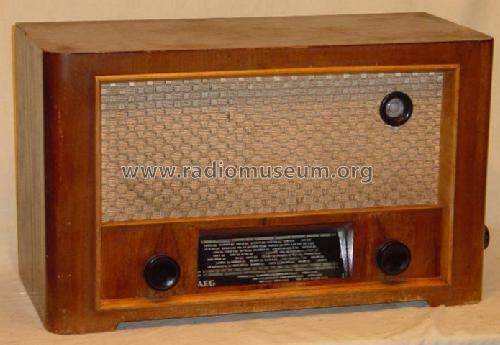

659GWK; AEG Radios Allg. (ID = 84777) Radio
AEG Radios Allg.: 659GWK [Radio] ID = 84777 695x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 659GWK, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1947 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH11 UBF11 UCL11 UY11 UM11
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 659GWK - AEG Radios Allg.Elektricitäts-
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes Wahrscheinlich in der SBZ hergestellt - welches Werk?
Source of data -- Collector info (Sammler)
