• Country
• Germany

• Manufacturer / Brand
• AEG (Radios) Allg.Elektricitäts-Ges.

• Year
• 1937

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 141831

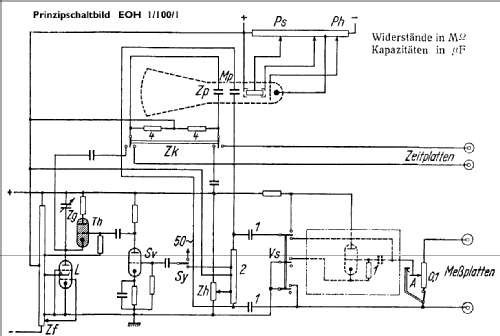

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• AF7 AF7 AF3 S0,7/0,2i RGN1404 HR1/100/1,5

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Elektronen-Oszillograph EOH1/100/1 - AEG Radios Allg.Elektricitäts-

• Shape
• Tablemodel, slant panel.

• Notes
• AEG Elektronen-Einstrahl-Oszillograph EOH1/100/1.
  Y-Verstärker: 2 Hz···2 MHz. Ablenkfrequenz: 5 Hz···100 kHz.

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by a member from D. See "Data change" for further contributors.
