Geadem 1G (a-c)

Geadem 1G ; AEG Radios Allg. (ID = 5951) Radio

Geadem 1G ; AEG Radios Allg. (ID = 2492413) Radio
Geadem 1G ; AEG Radios Allg. (ID = 707610) Radio
Use red slider bar for more.
Geadem 1G ; AEG Radios Allg. (ID = 707610) Radio
AEG Radios Allg.: Geadem 1G [Radio] ID = 707610 700x235
Select picture or schematic to display from thumbnails on the right and click for download.
For model Geadem 1G (a-c), AEG (Radios) Allg.Elektricitäts-Ges.:
Bild zum gleich aussehenden Modell automatisch kopiert statt wie bisher verknüpft (05.Jan.2010 EE).

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1928–1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RES044 RE084 RE054 RE134
Main principle TRF with regeneration; 1 Special; 2 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Direct Current supply (DC) / 110-230 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Geadem 1G - AEG Radios Allg.Elektricitäts-
Material Metal case
Notes Rückkopplung, Antennen-Kopplung und Feinstellungshebel.
Price in first year of sale 375.00 RM !
Source of data Arlt's grosser Radiokatalog 1930 / Radiokatalog Band 1, Ernst Erb

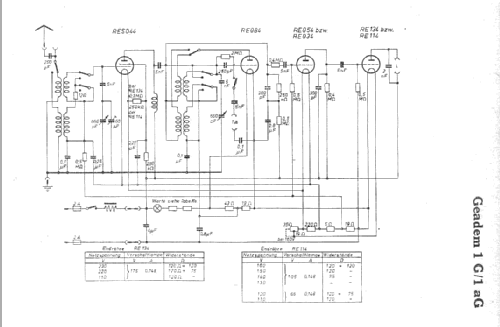

Circuit diagram reference Lange + FS-Bestückungstabellen
Mentioned in AEG Hilfsbuch für den Funkhändler
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
