Geadem 2W (a-f)

Geadem 2W ; AEG Radios Allg. (ID = 5955) Radio
Geadem 2W ; AEG Radios Allg. (ID = 49998) Radio Geadem 2W ; AEG Radios Allg. (ID = 50000) Radio
Geadem 2W ; AEG Radios Allg. (ID = 50001) Radio Geadem 2W ; AEG Radios Allg. (ID = 49999) Radio
Geadem 2W ; AEG Radios Allg. (ID = 50002) Radio Geadem 2W ; AEG Radios Allg. (ID = 189277) Radio
Geadem 2W ; AEG Radios Allg. (ID = 1458134) Radio Geadem 2W ; AEG Radios Allg. (ID = 1458135) Radio
Geadem 2W ; AEG Radios Allg. (ID = 1458136) Radio Geadem 2W ; AEG Radios Allg. (ID = 1458138) Radio
Use red slider bar for more.
Geadem 2W ; AEG Radios Allg. (ID = 49998) Radio
AEG Radios Allg.: Geadem 2W [Radio] ID = 49998 697x482
Select picture or schematic to display from thumbnails on the right and click for download.
For model Geadem 2W (a-f), AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1929–1931 Category: Broadcast Receiver - or past WW2 Tuner

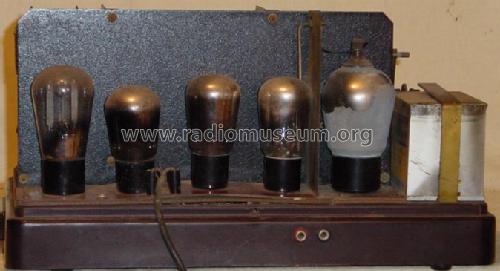

Valves / Tubes 5: RENS1204 REN1104 REN1104 RE304 or RE604 RGN1503
Main principle TRF with regeneration; 1 Special; 2 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 125; 230 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Geadem 2W - AEG Radios Allg.Elektricitäts-
Material Metal case
Notes siehe auch 33 [560, 569]
Price in first year of sale 375.00 RM !
Collectors' prices
Source of data Arlt's grosser Radiokatalog 1930 / Radiokatalog Band 1, Ernst Erb

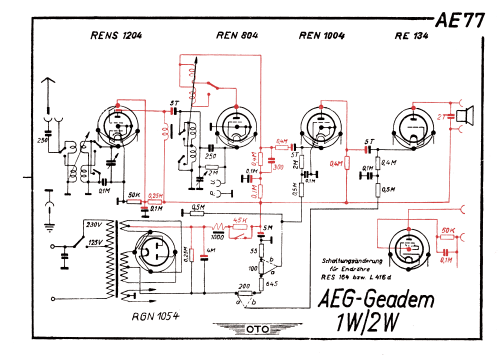

Circuit diagram reference Lange + FS-Bestückungstabellen
Mentioned in Katalog Radio-Zentrale Prohaska 1930/31 (dick)


All listed radios etc. from AEG (Radios) Allg.Elektricitäts-Ges.
Here you find 791 models, 673 with images and 398 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
