Geadux 112WL

Geadux 112WL; AEG Radios Allg. (ID = 207900) Radio

Geadux 112WL; AEG Radios Allg. (ID = 481166) Radio

Geadux 112WL; AEG Radios Allg. (ID = 481167) Radio
Geadux 112WL; AEG Radios Allg. (ID = 707633) Radio Geadux 112WL; AEG Radios Allg. (ID = 428876) Radio
Geadux 112WL; AEG Radios Allg. (ID = 719418) Radio
Use red slider bar for more.
Geadux 112WL; AEG Radios Allg. (ID = 707633) Radio
AEG Radios Allg.: Geadux 112WL [Radio] ID = 707633 426x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Geadux 112WL, AEG (Radios) Allg.Elektricitäts-Ges.:
Bild zum gleich aussehenden Modell automatisch kopiert statt wie bisher verknüpft (05.Jan.2010 EE).

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: REN914 RENS1374d RGN564
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Geadux 112WL - AEG Radios Allg.Elektricitäts-
Material Bakelite case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 300 x 360 x 175 mm / 11.8 x 14.2 x 6.9 inch
Notes

Parallelgerät zum Telefunken Wiking 125WL.
Parallelgerät zum Siemens 25WL.

Price in first year of sale 145.00 RM
Collectors' prices
Source of data Radio-Zentrale Prohaska 1933/34 / Radiokatalog Band 1, Ernst Erb

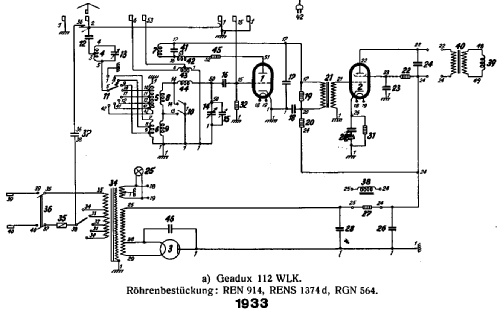

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in AEG Hilfsbuch für den Funkhändler
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
