Gearex W

Gearex W; AEG Radios Allg. (ID = 98844) Radio Gearex W; AEG Radios Allg. (ID = 98845) Radio
Gearex W; AEG Radios Allg. (ID = 98846) Radio Gearex W; AEG Radios Allg. (ID = 2493013) Radio
Use red slider bar for more.
Gearex W; AEG Radios Allg. (ID = 98844) Radio
AEG Radios Allg.: Gearex W [Radio] ID = 98844 674x410
Select picture or schematic to display from thumbnails on the right and click for download.
For model Gearex W, AEG (Radios) Allg.Elektricitäts-Ges.:
eBay

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1930/1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: REN904 RE134 RGN354
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Gearex W - AEG Radios Allg.Elektricitäts-
Price in first year of sale 90.00 RM !

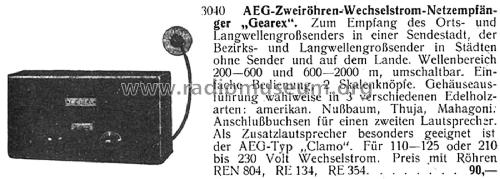

Source of data Katalog Radio-Zentrale Prohaska 1930/31 (dick) / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen
Mentioned in AEG Hilfsbuch für den Funkhändler
