Magnetophon KL15 EF40

Magnetophon KL15; AEG Radios Allg. (ID = 716760) R-Player

Magnetophon KL15; AEG Radios Allg. (ID = 28010) R-Player
Magnetophon KL15; AEG Radios Allg. (ID = 27927) R-Player Magnetophon KL15; AEG Radios Allg. (ID = 27928) R-Player
Magnetophon KL15; AEG Radios Allg. (ID = 385070) R-Player Magnetophon KL15; AEG Radios Allg. (ID = 493488) R-Player
Magnetophon KL15; AEG Radios Allg. (ID = 619232) R-Player Magnetophon KL15; AEG Radios Allg. (ID = 619233) R-Player
Magnetophon KL15; AEG Radios Allg. (ID = 619234) R-Player Magnetophon KL15; AEG Radios Allg. (ID = 619235) R-Player
Magnetophon KL15; AEG Radios Allg. (ID = 619236) R-Player Magnetophon KL15; AEG Radios Allg. (ID = 619237) R-Player
Use red slider bar for more.
Magnetophon KL15; AEG Radios Allg. (ID = 27927) R-Player
AEG Radios Allg.: Magnetophon KL15 [R-Player] ID = 27927 478x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Magnetophon KL15 EF40, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1952/1953 Category: Sound/Video Recorder and/or Player
Valves / Tubes 4: EF40 EF40 EDD11 EM71
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Magnetophon KL15 [EF40] - AEG Radios Allg.Elektricitäts-
Shape Tablemodel, low profile (big size).
Notes Zweispur; 19 cm/s; Spulen-Ø 18 cm; Frequenzbereich 50-10000 Hz; 3 Köpfe. Plattenteller und Tonarm aufsteckbar (Mehrpreis 45,- DM); Verstärker gegen Mehrpreis (220,- DM).
KL = Klein-Magnetophon.
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale 770.00 DM
Collectors' prices
Source of data Kat.d.Rundf.GrossH.1952/53 / Radiokatalog Band 1, Ernst Erb

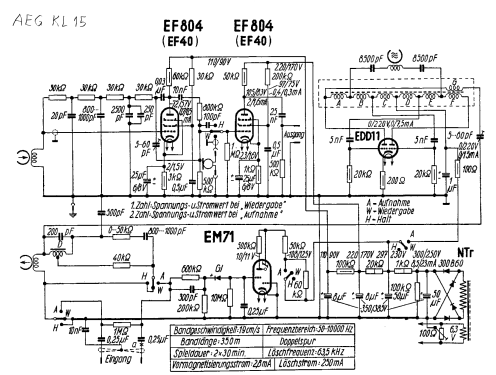

Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 1


All listed radios etc. from AEG (Radios) Allg.Elektricitäts-Ges.
