Ultra-Geadem W

ID = 29

Ultra-Geadem W; AEG Radios Allg. (ID = 440827) Radio

Ultra-Geadem W; AEG Radios Allg. (ID = 2592070) Radio

{gbW: "933", gbH: "601", mW: "500", mH: "322.0", kb: "44 KB", notes: "For model Ultra-Geadem W, AEG (Radios) Allg.Elektricitäts-Ges.", title: "AEG Radios Allg. Ultra-Geadem W from Karlheinz Schneider (1)", ite: "1"} {gbW: "815", gbH: "461", mW: "500", mH: "282.0", kb: "57 KB", notes: "For model Ultra-Geadem W, AEG (Radios) Allg.Elektricitäts-Ges.", title: "AEG Radios Allg. Ultra-Geadem W uploaded by Martin Steyer (2)", ite: "2"} {gbW: "933", gbH: "699", mW: "500", mH: "375", kb: "82 KB", notes: "For model Ultra-Geadem W, AEG (Radios) Allg.Elektricitäts-Ges.", title: "AEG Radios Allg. Ultra-Geadem W from Gerhard Wild (1)", ite: "1"} {gbW: "802", gbH: "568", mW: "500", mH: "354.0", kb: "41 KB", notes: "For model Ultra-Geadem W, AEG (Radios) Allg.Elektricitäts-Ges.", title: "AEG Radios Allg. Ultra-Geadem W from Martin Steyer (1)", ite: "1"} {gbW: "454", gbH: "448", mW: "380.0", mH: "375", kb: "49 KB", notes: "For model Ultra-Geadem W, AEG (Radios) Allg.Elektricitäts-Ges.", title: "AEG Radios Allg. Ultra-Geadem W uploaded by Martin Steyer (2)", ite: "2"} {gbW: "737", gbH: "424", mW: "500", mH: "287.0", kb: "44 KB", notes: "For model Ultra-Geadem W, AEG (Radios) Allg.Elektricitäts-Ges.", title: "AEG Radios Allg. Ultra-Geadem W from Martin Steyer (1)", ite: "1"} {gbW: "933", gbH: "583", mW: "500", mH: "312.0", kb: "57 KB", notes: "For model Ultra-Geadem W, AEG (Radios) Allg.Elektricitäts-Ges.", title: "AEG Radios Allg. Ultra-Geadem W from Hartmut Völler (1)", ite: "1"} {gbW: "933", gbH: "700", mW: "500", mH: "375", kb: "120 KB", notes: "For model Ultra-Geadem W, AEG (Radios) Allg.Elektricitäts-Ges.", title: "AEG Radios Allg. Ultra-Geadem W from Reinhard Hopfe (1)", ite: "1"} {gbW: "933", gbH: "700", mW: "500", mH: "375", kb: "118 KB", notes: "For model Ultra-Geadem W, AEG (Radios) Allg.Elektricitäts-Ges.", title: "AEG Radios Allg. Ultra-Geadem W from Reinhard Hopfe (1)", ite: "1"} {gbW: "933", gbH: "700", mW: "500", mH: "375", kb: "107 KB", notes: "For model Ultra-Geadem W, AEG (Radios) Allg.Elektricitäts-Ges.", title: "AEG Radios Allg. Ultra-Geadem W from Reinhard Hopfe (1)", ite: "1"}

Ultra-Geadem W; AEG Radios Allg. (ID = 45409) Radio

Ultra-Geadem W; AEG Radios Allg. (ID = 48767) Radio

Ultra-Geadem W; AEG Radios Allg. (ID = 48770) Radio

Ultra-Geadem W; AEG Radios Allg. (ID = 934154) Radio

Ultra-Geadem W; AEG Radios Allg. (ID = 934155) Radio

Ultra-Geadem W; AEG Radios Allg. (ID = 934156) Radio

Next pictures

Use red slider bar for more.

Ultra-Geadem W; AEG Radios Allg. (ID = 739114) Radio

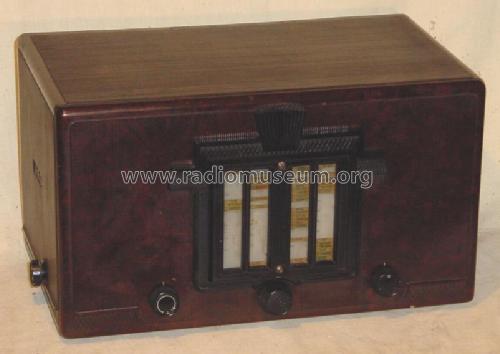

AEG Radios Allg.: Ultra-Geadem W [Radio] ID = 739114 933x601

Select picture or schematic to display from thumbnails on the right and click for download.

For model Ultra-Geadem W, AEG (Radios) Allg.Elektricitäts-Ges.

Country:

Germany

Manufacturer / Brand:

AEG (Radios) Allg.Elektricitäts-Ges.

Year: 1932/1933

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

5: RENS1214 RENS1214 REN904 RES164 RGN564

Main principle	TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 Special; 1 AF stage(s); Anode bend detection
Tuned circuits	3 AM circuit(s)
Wave bands	Broadcast (MW) and Long Wave.
Details
Power type and voltage	Alternating Current supply (AC) / 100-265 Volt
Loudspeaker	- This model requires external speaker(s).
Power out
from Radiomuseum.org	Model: Ultra-Geadem W - AEG Radios Allg.Elektricitäts-
Material	Bakelite case
Dimensions (WHD)	430 x 250 x 250 mm / 16.9 x 9.8 x 9.8 inch
Net weight (2.2 lb = 1 kg)	10.5 kg / 23 lb 2 oz (23.128 lb)
Price in first year of sale	253.00 RM !
Source of data	Katalog Radio-Zentrale Prohaska 1932/33 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference	Röhren in FS-Bestückungstabellen
Mentioned in	AEG Hilfsbuch für den Funkhändler
Picture reference	Das Modell ist im «Radiokatalog» (Erb) abgebildet.

All listed radios etc. from AEG (Radios) Allg.Elektricitäts-Ges.
Here you find 805 models, 692 with images and 412 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.

Collection of Holger Drechsel (D)
