2165

AGA and Aga-Baltic Radio AB; Sweden

Data
Forum
Pictures
Collections

  • Year
  • 1952 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 336812
    • alternative name: AGA-Baltic Radio AB; Stockholm

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 463 kHz
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 2165 - AGA and Aga-Baltic Radio AB;
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes

  • One 10 inch and one 6 inch loudspeaker.

    Wavebands:
     -  700 - 2000 m
     -  185 - 600 m
     -  30 - 52 m
     -  19 - 30 m
     -  13.6 - 20 m.

    See also AGA model 2165B and 2166.

  • Mentioned in

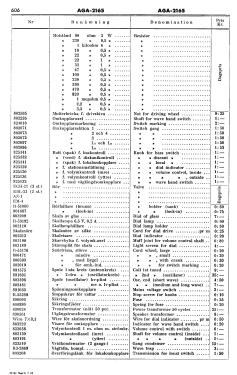

  • -- Original-techn. papers. (AGA-Radio 1951-52 service documentation)
  • Author
  • Model page created by Lars Nord. See "Data change" for further contributors.
