• Country
• Sweden

• Manufacturer / Brand
• AGA and Aga-Baltic Radio AB; Sweden

• Year
• 1953 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 336902

• • alternative name: AGA-Baltic Radio AB; Stockholm

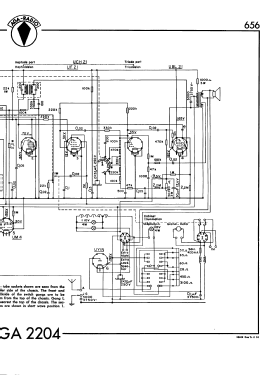

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCH21 UCH21 UF21 UBL21 UM4 UY1N

• Main principle
• Superheterodyne (common); ZF/IF 463 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• AC/DC-set

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 2204 - AGA and Aga-Baltic Radio AB;

• Notes

• Wavebands:
    700 - 2000 m
    185 - 600 m
    21 - 65 m
    13 - 20,5 m.

  Model 2204 is equipped with a switch for switching between local and remote stations.

• Mentioned in

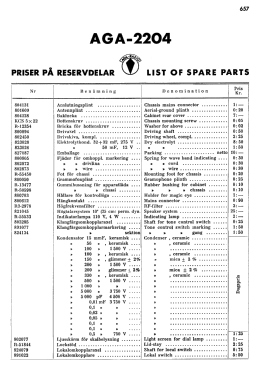

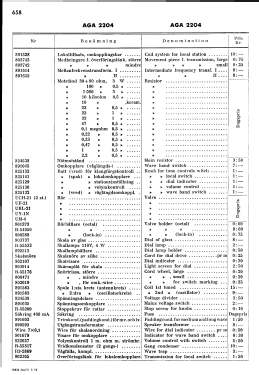

• - - Manufacturers Literature (AGA-Radio 1952-53 service documentation)

• Author
• Model page created by Lars Nord. See "Data change" for further contributors.
