• Year
  • 1953/1954 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 206906
    • alternative name: AGA-Baltic Radio AB; Stockholm

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 463 kHz
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

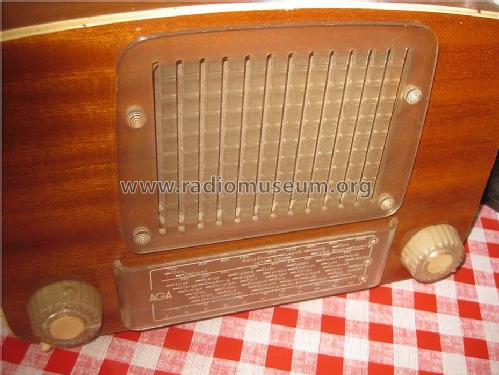

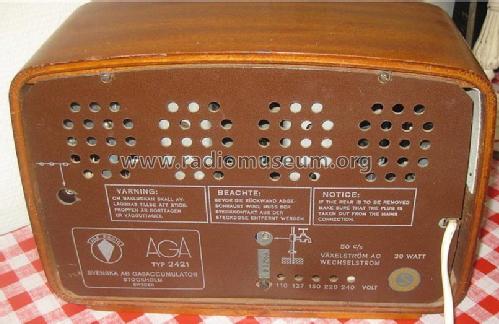

  • Model: 2421 - AGA and Aga-Baltic Radio AB;
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 305 x 235 x 145 mm / 12 x 9.3 x 5.7 inch
  • Net weight (2.2 lb = 1 kg)
  • 4.2 kg / 9 lb 4 oz (9.251 lb)
  • Mentioned in
  • - - Manufacturers Literature (AGA-Radio service documentation 1953-54)
  • Author
  • Model page created by Timo Rantasaari. See "Data change" for further contributors.
