- Country
- Sweden
- Manufacturer / Brand
- AGA and Aga-Baltic Radio AB; Sweden
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 337113
-
- alternative name: AGA-Baltic Radio AB; Stockholm
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 463/10700 kHz
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 2503FM - AGA and Aga-Baltic Radio AB;
- Shape
- Console, Lowboy (legs < 50 %).
- Mentioned in

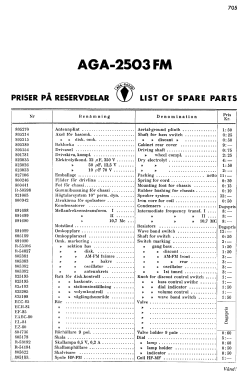

- - - Manufacturers Literature (AGA-Radio service documentation 1954-55)
- Author
- Model page created by Lars Nord. See "Data change" for further contributors.
