Sonat 783

Sonat 783; AGA and Aga-Baltic (ID = 2373032) Radio
Sonat 783; AGA and Aga-Baltic (ID = 2470915) Radio
Use red slider bar for more.
Sonat 783; AGA and Aga-Baltic (ID = 2470915) Radio

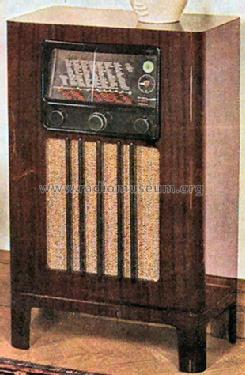

AGA and Aga-Baltic: Sonat 783 [Radio] ID = 2470915 310x474
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sonat 783, AGA and Aga-Baltic Radio AB; Sweden:
Manufacturer´s brochure 1938

Country:  Sweden
Manufacturer / Brand:  AGA and Aga-Baltic Radio AB; Sweden
alternative name

AGA-Baltic Radio AB; Stockholm
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 6K7G 6A8 6K7G 6H6 6N7G 6N6G 6N6G 6G5 5X4G
Main principle Superhet with RF-stage; ZF/IF 133 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out 8 W (unknown quality)
from Radiomuseum.org Model: Sonat 783 - AGA and Aga-Baltic Radio AB;
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 500 x 800 x 279 mm / 19.7 x 31.5 x 11 inch
Notes

Tuned RF amplifier stage for all wave bands. Push-pull AF output amplifier.



Variable bandwidth.

Price in first year of sale 520.00 SFR
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
