• Country
• Sweden

• Manufacturer / Brand
• AGA and Aga-Baltic Radio AB; Sweden

• Year
• 1950 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 244393

• • alternative name: AGA-Baltic Radio AB; Stockholm

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH21 EF22 EF22 EBL21 EM4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 463 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 26 cm = 10.2 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Radiogramophone 8535 - AGA and Aga-Baltic Radio AB;

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 900 x 725 x 430 mm / 35.4 x 28.5 x 16.9 inch

• Notes

• Exact schematic has not been found and is requested. Schematic for AGA 1851 and 2051 can give guidance as the tubes are the same.
  This is a well built furniture with the main components as modules.
  The voltage for the gramophone is 135 V.

  This radiogramophone was available in two versions, 8535 and 8535B. The 8535 is equipped with a dial until March 15, 1950, while the 8535B is equipped with a double-printed dial.

• Net weight (2.2 lb = 1 kg)
• 50 kg / 110 lb 2.1 oz (110.132 lb)

• Mentioned in

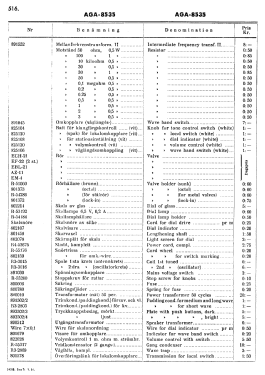

• - - Manufacturers Literature (AGA-Radio service document from 1948-50)

• Author
• Model page created by Ola Gröndalen. See "Data change" for further contributors.
