5085 Ch= 542
Airzone (1931) Ltd.; Sydney
- Country
- Australia
- Manufacturer / Brand
- Airzone (1931) Ltd.; Sydney
- Year
- 1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 182046

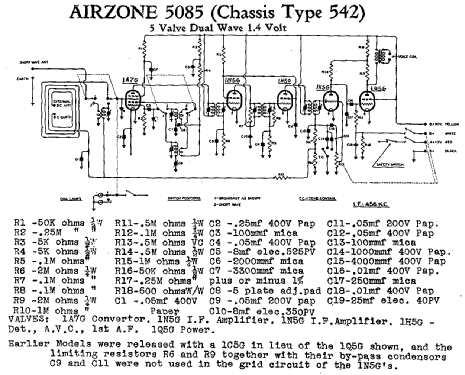

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Dry Batteries / 90 & 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

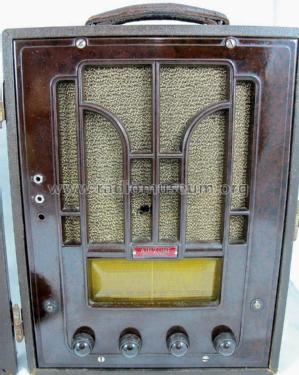

- Model: 5085 Ch= 542 - Airzone 1931 Ltd.; Sydney
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
Early models were released with a 1C5G in lieu of the 1Q5G. Refer to schematic in AORSM 4, Page 24.
- Price in first year of sale
- 26.00 Aus£
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. IV
- Literature/Schematics (1)
- Mingay's Radio Diagram & I.F. Index
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
