Mignon Stereo Tape Recorder 1720W
- Manufacturer / Brand
- Akai Electric Co., Ltd.; Tokyo
- 1971 ?
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Main principle
- Wave bands
- - without
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110; 117; 220; 240 Volt
- 2 Loudspeakers
- Power out
- 8 W (max.)
- Wooden case
- from Radiomuseum.org
- Model: Mignon Stereo Tape Recorder 1720W - Akai Electric Co., Ltd.; Tokyo
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 355 x 360 x 240 mm / 14 x 14.2 x 9.4 inch

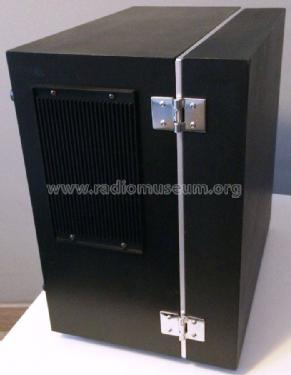

Stereo/Mono tape recorder in a wooden cabinet.
Track system: 4-track, 2-channel, stereo/monaural system
Tape speeds: 1 7⁄8 3 3⁄4 7 1⁄2 ips (and 15 ips with optional adaptor kit)
Wow and flutter: 0.18% (7 1⁄2 ips)
Frequency response: 40Hz to 15kHz (7 1⁄2 ips)
Signal to Noise Ratio: Better than 50dB
Total harmonic distortion: within 3%
Output power: Total 8 watts
Microphone, Line and DIN inputs, DIN output
Same as the Akai 1720L model which is housed in a leather finish cabinet.
- Net weight (2.2 lb = 1 kg)
- 13.4 kg / 29 lb 8.2 oz (29.515 lb)
- Mentioned in

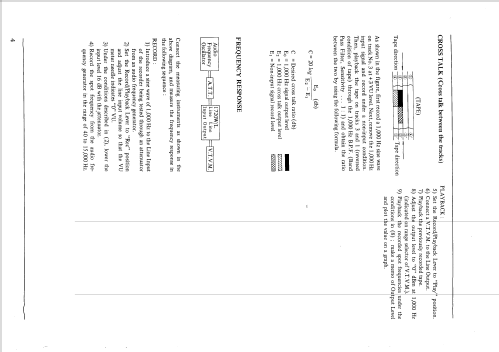

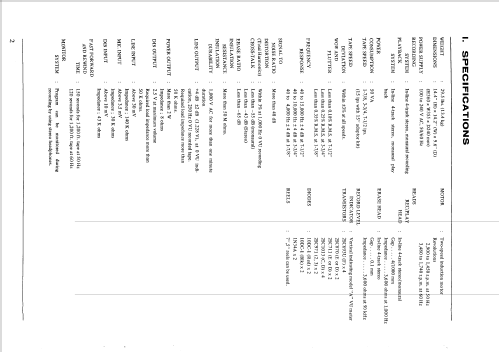

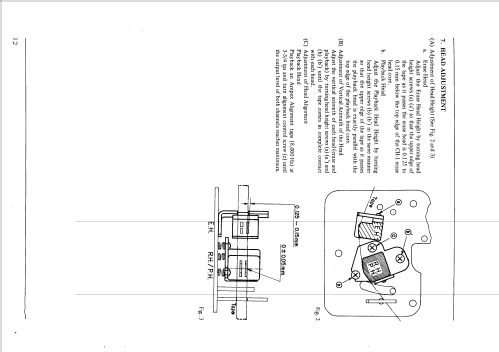

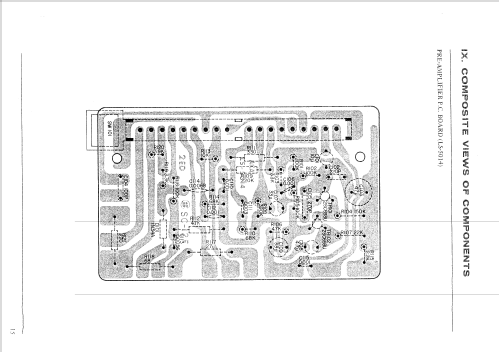

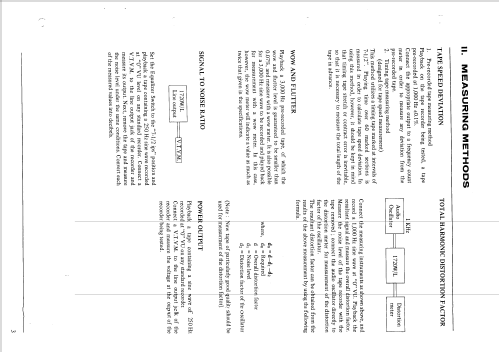

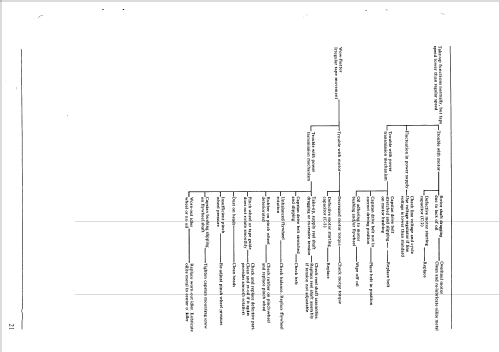

- - - Manufacturers Literature (Service manual for Akai tape recorders 1720W and 1720L)
- Model page created by Howard Craven. See "Data change" for further contributors.
