Akkord 770/95790

Akkord 770/95790; Akkord-Radio + (ID = 62037) Radio

Akkord 770/95790; Akkord-Radio + (ID = 62038) Radio

Akkord 770/95790; Akkord-Radio + (ID = 809460) Radio

Akkord 770/95790; Akkord-Radio + (ID = 809461) Radio

Akkord 770/95790; Akkord-Radio + (ID = 809462) Radio

Akkord 770/95790; Akkord-Radio + (ID = 809463) Radio
Akkord 770/95790; Akkord-Radio + (ID = 2082438) Radio Akkord 770/95790; Akkord-Radio + (ID = 1365609) Radio
Akkord 770/95790; Akkord-Radio + (ID = 14750) Radio Akkord 770/95790; Akkord-Radio + (ID = 28893) Radio
Akkord 770/95790; Akkord-Radio + (ID = 301154) Radio Akkord 770/95790; Akkord-Radio + (ID = 533641) Radio
Akkord 770/95790; Akkord-Radio + (ID = 967622) Radio Akkord 770/95790; Akkord-Radio + (ID = 1183688) Radio
Akkord 770/95790; Akkord-Radio + (ID = 1183689) Radio Akkord 770/95790; Akkord-Radio + (ID = 1183690) Radio
Use red slider bar for more.
Akkord 770/95790; Akkord-Radio + (ID = 2082438) Radio
Akkord-Radio +: Akkord 770/95790 [Radio] ID = 2082438 1400x914
Select picture or schematic to display from thumbnails on the right and click for download.
For model Akkord 770/95790, Akkord-Radio + Akkord Elektronik (Radios):
eigenes Foto aufgenommen am 20.11.2016

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1965/1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: AF106 AF135 AF136 AF137 AF138 OC45 AC117 AC117 AC122 AC122 AC122
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / D: 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1.8 W (unknown quality)
from Radiomuseum.org Model: Akkord 770/95790 - Akkord-Radio + Akkord
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 270 x 197 x 82 mm / 10.6 x 7.8 x 3.2 inch
Notes

Betrieb im Auto über Autohalterung aus 6 V+- oder 12 V+- Autobatterie oder zusätzlichem Netzteil möglich.

Produktion Blaupunkt, siehe ähnliches Modell Derby 95700.

Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
Source of data Handbuch VDRG 1965/1966 / Radiokatalog Band 1, Ernst Erb

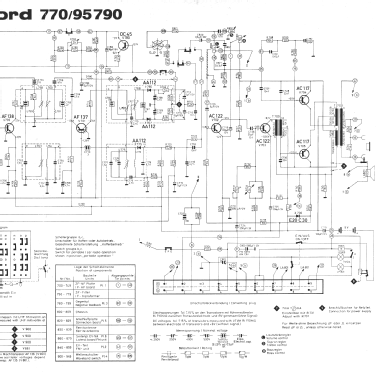

Literature/Schematics (1) -- Original-techn. papers.
