Autotransistor automatic 640

Autotransistor automatic 640; Akkord-Radio + (ID = 105504) Radio

Autotransistor automatic 640; Akkord-Radio + (ID = 105505) Radio

Autotransistor automatic 640; Akkord-Radio + (ID = 105506) Radio

Autotransistor automatic 640; Akkord-Radio + (ID = 105507) Radio

Autotransistor automatic 640; Akkord-Radio + (ID = 105508) Radio
Autotransistor automatic 640; Akkord-Radio + (ID = 508897) Radio Autotransistor automatic 640; Akkord-Radio + (ID = 508898) Radio
Autotransistor automatic 640; Akkord-Radio + (ID = 508899) Radio
Use red slider bar for more.
Autotransistor automatic 640; Akkord-Radio + (ID = 508897) Radio

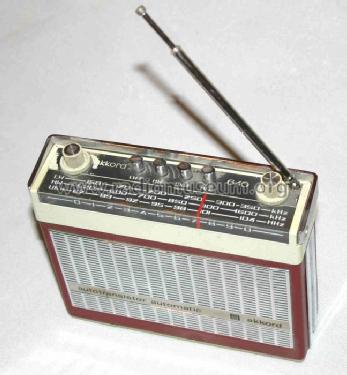

Akkord-Radio +: Autotransistor automatic 640 [Radio] ID = 508897 648x700

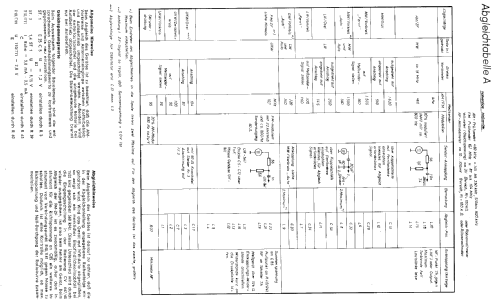

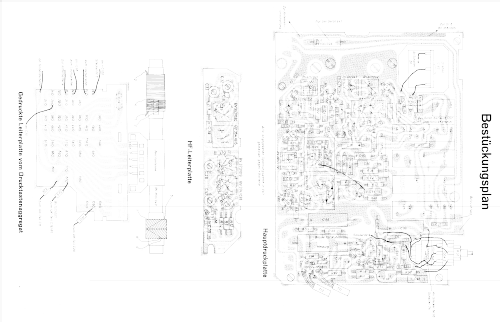

Select picture or schematic to display from thumbnails on the right and click for download.
For model Autotransistor automatic 640, Akkord-Radio + Akkord Elektronik (Radios)

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1967–1969 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11:
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Autotransistor automatic 640 - Akkord-Radio + Akkord
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 172 x 150 x 46 mm / 6.8 x 5.9 x 1.8 inch
Notes

Transistoren: 2× AF106, 4× AF126, AF138, 2× AC122, AC178, AC179p.
Transportabler Autosuper für alle Wagentypen mit 6-V- oder 12-V-Autobatterie; elektromagnetische Diebstahlsicherung nach Einschub in die Autohalterung CV647/48 mit eingebautem Verstärker; Ausgangsleistung bei Autobetrieb = 6-8 W.

Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Price in first year of sale 259.00 DM
Collectors' prices
Source of data Handbuch VDRG 1967/1968 / Radiokatalog Band 1, Ernst Erb
