Autotransistor AT-539/2500 ab 385001

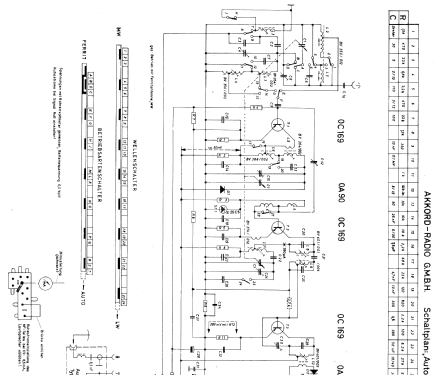

Autotransistor AT-539/2500; Akkord-Radio + (ID = 513464) Radio

Autotransistor AT-539/2500; Akkord-Radio + (ID = 513465) Radio

Autotransistor AT-539/2500; Akkord-Radio + (ID = 513466) Radio

Autotransistor AT-539/2500; Akkord-Radio + (ID = 513467) Radio

Autotransistor AT-539/2500; Akkord-Radio + (ID = 1824891) Radio

Autotransistor AT-539/2500; Akkord-Radio + (ID = 1824892) Radio

Autotransistor AT-539/2500; Akkord-Radio + (ID = 1824893) Radio

Autotransistor AT-539/2500; Akkord-Radio + (ID = 1824894) Radio

Autotransistor AT-539/2500; Akkord-Radio + (ID = 2601988) Radio

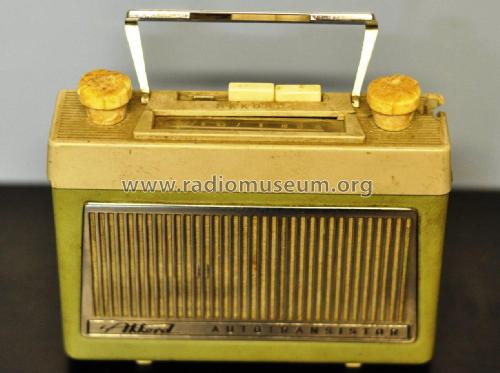

Autotransistor AT-539/2500; Akkord-Radio + (ID = 1825973) Radio Autotransistor AT-539/2500; Akkord-Radio + (ID = 1825981) Radio
Autotransistor AT-539/2500; Akkord-Radio + (ID = 1826021) Radio Autotransistor AT-539/2500; Akkord-Radio + (ID = 1951081) Radio
Autotransistor AT-539/2500; Akkord-Radio + (ID = 2472968) Radio
Use red slider bar for more.
Autotransistor AT-539/2500; Akkord-Radio + (ID = 1825973) Radio

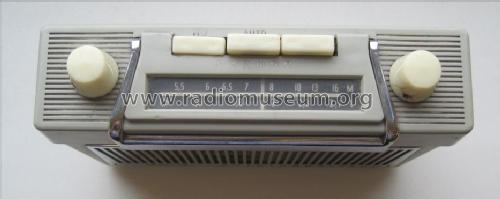

Akkord-Radio +: Autotransistor AT-539/2500 [Radio] ID = 1825973 933x372
Select picture or schematic to display from thumbnails on the right and click for download.
For model Autotransistor AT-539/2500 ab 385001, Akkord-Radio + Akkord Elektronik (Radios):
Autotransistor 539 Snr.:390365

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1960–1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC169 OC169 OC169 OC71 OC71 OC74 OC74 OA90 OA90
Main principle Superhet with RF-stage; ZF/IF 462 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / AA: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Autotransistor AT-539/2500 [ab 385001] - Akkord-Radio + Akkord
Material Various materials
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 165 x 120 x 43 mm / 6.5 x 4.7 x 1.7 inch
Notes

Ferritantenne, gedruckte Schaltung, Druckschalter mit Goldkontakten. Tonblendenschalter, lineare Flutlichtskala.

Kunstlederbezogenes Leichtmetallgehäuse.
Vorgesehene Einschubhalterung: A/6, B/6 oder B/12.

Siehe auch Modell Akkord Autotransistor 539 bis Nr. 385000.

Der Zusatz 2500 zur Typbezeichnung ist lediglich auf der Stückliste angegeben, jedoch nicht auf dem Modell vermerkt. Ebenso findet sich die Bezeichnung AT-539 nur in den Akkord-Serviceunterlagen.

Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)
Price in first year of sale 235.00 DM
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) HdB d.Rdf-& Ferns-GrH 1960/61
Literature/Schematics (2) Handbuch RFP 1961/62 (S. 225)
Literature/Schematics (3) -- Original prospect or advert

Model page created by Rudolf Müller. See "Data change" for further contributors.



All listed radios etc. from Akkord-Radio + Akkord Elektronik (Radios)
Here you find 198 models, 175 with images and 140 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
