For model Filou 610/4000, Akkord-Radio + Akkord Elektronik (Radios)

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1962 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF124 AF125 AF126 AF126 AF126 TF65 TF65 AC120 AC120 OA79 OA79 OA70 E25C5
Main principle Superhet with RF-stage; none
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / 2 x 4,5 / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Filou 610/4000 - Akkord-Radio + Akkord
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 246 x 162 x 75 mm / 9.7 x 6.4 x 3 inch
Notes

FM-Bereich 87 - 100 MHz.

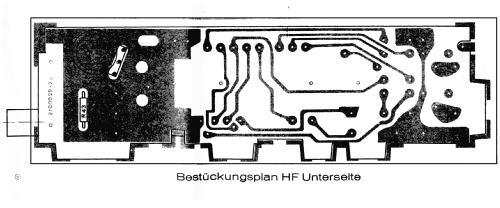

Verschiedene alternative Bestückungen möglich, s. Schema.

Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Rudolf Müller. See "Data change" for further contributors.
