Jonny M56

Jonny M56; Akkord-Radio + (ID = 39735) Radio

Jonny M56; Akkord-Radio + (ID = 11828) Radio
Jonny M56; Akkord-Radio + (ID = 707676) Radio Jonny M56; Akkord-Radio + (ID = 1050791) Radio
Jonny M56; Akkord-Radio + (ID = 1299200) Radio
Use red slider bar for more.
Jonny M56; Akkord-Radio + (ID = 707676) Radio

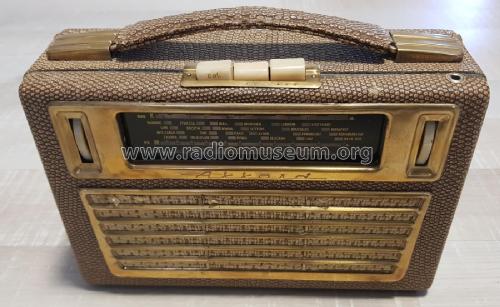

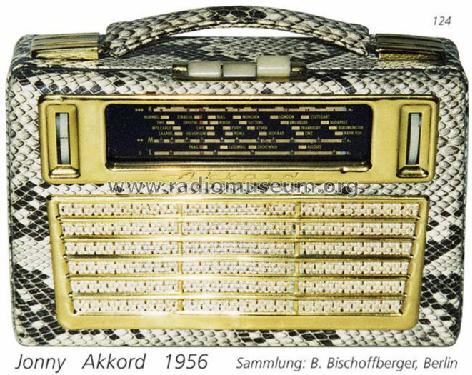

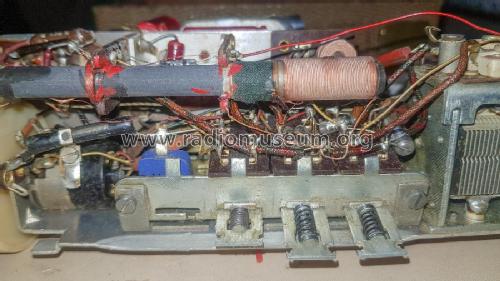

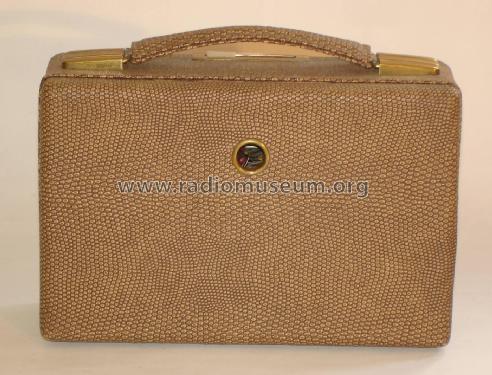

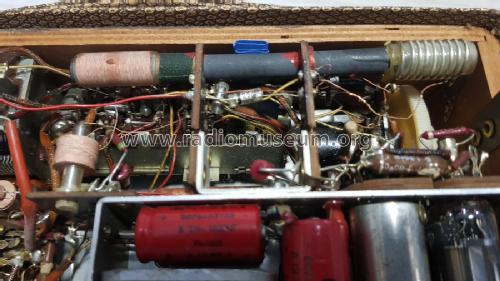

Akkord-Radio +: Jonny M56 [Radio] ID = 707676 662x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Jonny M56, Akkord-Radio + Akkord Elektronik (Radios):
Bild zum gleich aussehenden Modell automatisch kopiert statt wie bisher verknüpft (05.Jan.2010 EE).

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK92 DF96 DAF96 DL96
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Line / Batteries (any type) / 110; 220 / 1,5 & 75 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Jonny M56 - Akkord-Radio + Akkord
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 236 x 160 x 76 mm / 9.3 x 6.3 x 3 inch
Notes Siehe auch Akkord Jonny K56 (LW, MW und 2x KW).
Source of data Radiokatalog Band 1, Ernst Erb

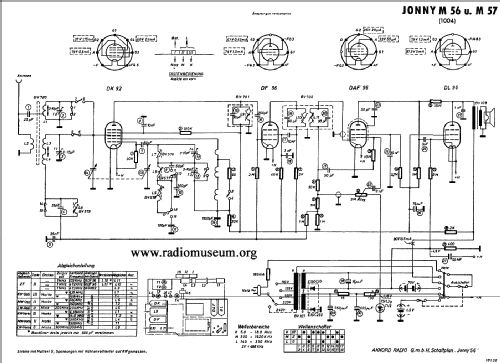

Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 1
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
