Motorette 561/3200

Motorette 561/3200; Akkord-Radio + (ID = 121358) Radio

Motorette 561/3200; Akkord-Radio + (ID = 121359) Radio

Motorette 561/3200; Akkord-Radio + (ID = 121361) Radio

Motorette 561/3200; Akkord-Radio + (ID = 121363) Radio
Motorette 561/3200; Akkord-Radio + (ID = 1295832) Radio Motorette 561/3200; Akkord-Radio + (ID = 29045) Radio
Motorette 561/3200; Akkord-Radio + (ID = 56581) Radio Motorette 561/3200; Akkord-Radio + (ID = 29678) Radio
Motorette 561/3200; Akkord-Radio + (ID = 741047) Radio Motorette 561/3200; Akkord-Radio + (ID = 1295833) Radio
Motorette 561/3200; Akkord-Radio + (ID = 1295834) Radio Motorette 561/3200; Akkord-Radio + (ID = 1295835) Radio
Motorette 561/3200; Akkord-Radio + (ID = 1295836) Radio Motorette 561/3200; Akkord-Radio + (ID = 1295837) Radio
Use red slider bar for more.
Motorette 561/3200; Akkord-Radio + (ID = 1295832) Radio

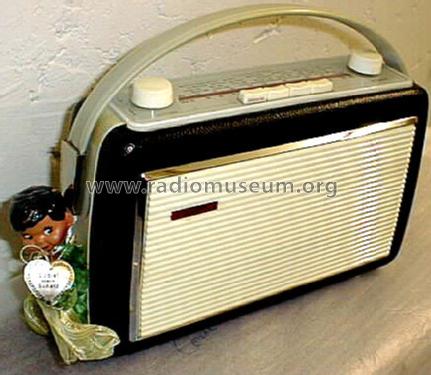

Akkord-Radio +: Motorette 561/3200 [Radio] ID = 1295832 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Motorette 561/3200, Akkord-Radio + Akkord Elektronik (Radios)

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: OC615 AF105 OC170 AF105 OC71 OC75 OC74 OC74 OA90 OA90 OA172 OA172
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 5x1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Motorette 561/3200 - Akkord-Radio + Akkord
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 275 x 170 x 85 mm / 10.8 x 6.7 x 3.3 inch
Notes
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Price in first year of sale 249.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1961/62 / Radiokatalog Band 1, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Akkord-Radio + Akkord Elektronik (Radios)
Here you find 198 models, 179 with images and 143 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.


Collection of a member from D
