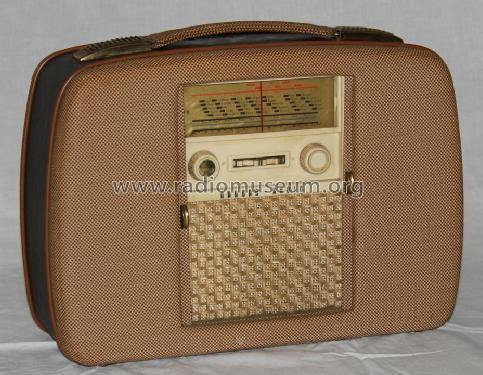

Akkord-Radio +: Offenbach 52 NB 5 [Radio] ID = 1207272 930x721
Select picture or schematic to display from thumbnails on the right and click for download.
For model Offenbach 52 NB 5, Akkord-Radio + Akkord Elektronik (Radios)

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK92 DF91 DAF91 DL94
Main principle Super-Heterodyne (Super in general); ZF/IF 473 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Line / Batteries (any type) / AC/DC 117; 220 / 9 & 80 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: Offenbach 52 NB 5 - Akkord-Radio + Akkord
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 340 x 240 x 120 mm / 13.4 x 9.4 x 4.7 inch
Notes Eingebaute Rahmenantenne. Kunstlederbezug; Lederbezug gegen Mehrpreis (55,- DM).
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 228.00 DM
Collectors' prices
Source of data Kat.d.Rundf.GrossH.1952/53

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
