Offenbach M

Offenbach M; Akkord-Radio + (ID = 364659) Radio

Offenbach M; Akkord-Radio + (ID = 11834) Radio
Offenbach M; Akkord-Radio + (ID = 406136) Radio Offenbach M; Akkord-Radio + (ID = 299525) Radio
Offenbach M; Akkord-Radio + (ID = 299515) Radio Offenbach M; Akkord-Radio + (ID = 299516) Radio
Offenbach M; Akkord-Radio + (ID = 299513) Radio Offenbach M; Akkord-Radio + (ID = 299521) Radio
Offenbach M; Akkord-Radio + (ID = 299522) Radio Offenbach M; Akkord-Radio + (ID = 299523) Radio
Offenbach M; Akkord-Radio + (ID = 299524) Radio Offenbach M; Akkord-Radio + (ID = 406137) Radio
Use red slider bar for more.

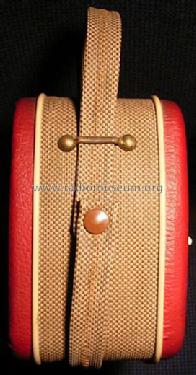

Offenbach M; Akkord-Radio + (ID = 406136) Radio
Akkord-Radio +: Offenbach M [Radio] ID = 406136 598x507
Select picture or schematic to display from thumbnails on the right and click for download.
For model Offenbach M, Akkord-Radio + Akkord Elektronik (Radios):
Bildquelle: ebay

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1950 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK91 DF91 DAF91 DL92
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 450 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / 110/220 / 2,4 & 75 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Offenbach M - Akkord-Radio + Akkord
Shape Portable set > 8 inch (also usable without mains)
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 1


All listed radios etc. from Akkord-Radio + Akkord Elektronik (Radios)
Here you find 198 models, 177 with images and 140 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
