Offenbach U55

Offenbach U55; Akkord-Radio + (ID = 11839) Radio

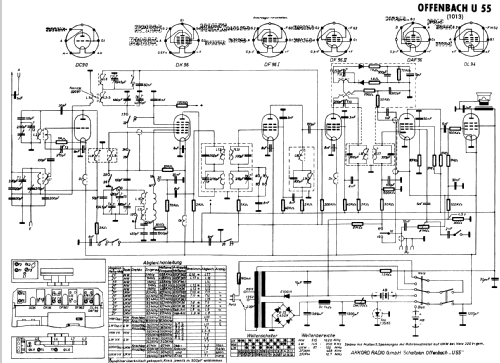

Offenbach U55; Akkord-Radio + (ID = 844510) Radio
Offenbach U55; Akkord-Radio + (ID = 959409) Radio Offenbach U55; Akkord-Radio + (ID = 57432) Radio
Offenbach U55; Akkord-Radio + (ID = 57433) Radio Offenbach U55; Akkord-Radio + (ID = 57434) Radio
Offenbach U55; Akkord-Radio + (ID = 57435) Radio Offenbach U55; Akkord-Radio + (ID = 294394) Radio

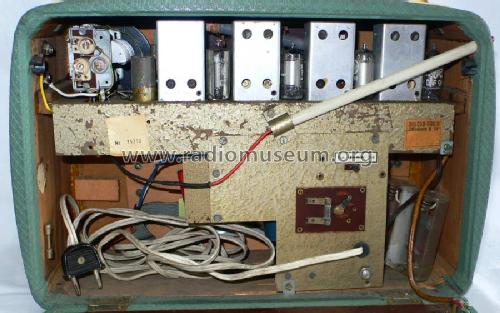

Offenbach U55; Akkord-Radio + (ID = 294395) Radio Offenbach U55; Akkord-Radio + (ID = 294396) Radio

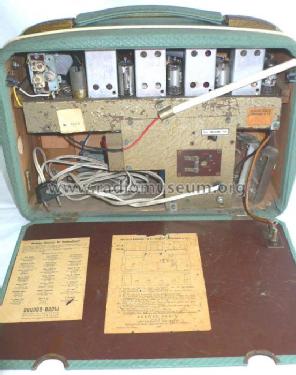

Offenbach U55; Akkord-Radio + (ID = 294398) Radio Offenbach U55; Akkord-Radio + (ID = 294399) Radio
Use red slider bar for more.
Offenbach U55; Akkord-Radio + (ID = 959409) Radio
Akkord-Radio +: Offenbach U55 [Radio] ID = 959409 933x701
Select picture or schematic to display from thumbnails on the right and click for download.
For model Offenbach U55, Akkord-Radio + Akkord Elektronik (Radios)

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: DC90 DK96 DF96 DF96 DAF96 DL94
Main principle Superhet with RF-stage; ZF/IF 468 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110-220; (2 × 1,5 / 100) Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Offenbach U55 - Akkord-Radio + Akkord
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 370 x 240 x 120 mm / 14.6 x 9.4 x 4.7 inch
Notes Anschluss an Autobatterie über Zerhacker AKZ103 (DM 58,-) möglich.
Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Price in first year of sale 279.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1955/56 / Radiokatalog Band 1, Ernst Erb
Picture reference Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.


All listed radios etc. from Akkord-Radio + Akkord Elektronik (Radios)
Here you find 198 models, 177 with images and 140 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
