Picknick Ch= Offenbach U54

Picknick Ch= Offenbach U54; Akkord-Radio + (ID = 2129163) Radio Picknick Ch= Offenbach U54; Akkord-Radio + (ID = 2129164) Radio
Picknick Ch= Offenbach U54; Akkord-Radio + (ID = 2129169) Radio Picknick Ch= Offenbach U54; Akkord-Radio + (ID = 2129165) Radio
Picknick Ch= Offenbach U54; Akkord-Radio + (ID = 2129166) Radio Picknick Ch= Offenbach U54; Akkord-Radio + (ID = 2129167) Radio
Picknick Ch= Offenbach U54; Akkord-Radio + (ID = 2129168) Radio
Use red slider bar for more.
Picknick Ch= Offenbach U54; Akkord-Radio + (ID = 2129163) Radio

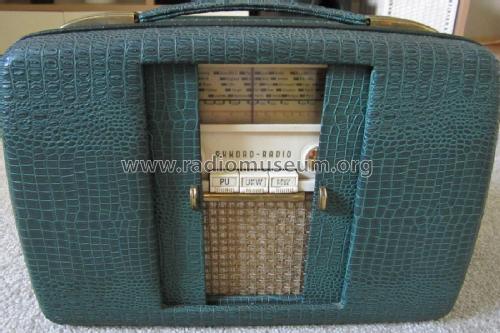

Akkord-Radio +: Picknick Ch= Offenbach U54 [Radio] ID = 2129163 1400x934
Select picture or schematic to display from thumbnails on the right and click for download.
For model Picknick Ch= Offenbach U54, Akkord-Radio + Akkord Elektronik (Radios):
ebay 192236756179, feinder

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: DC90 DF96 DF96 DF96 DAF96 DL94
Main principle Superhet with RF-stage; ZF/IF 470/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details Record Player (not changer)
Power type and voltage Line / Batteries (any type) / 110; 125; 220 / 1,5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Picknick Ch= Offenbach U54 - Akkord-Radio + Akkord
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 370 x 240 x 148 mm / 14.6 x 9.4 x 5.8 inch
Notes

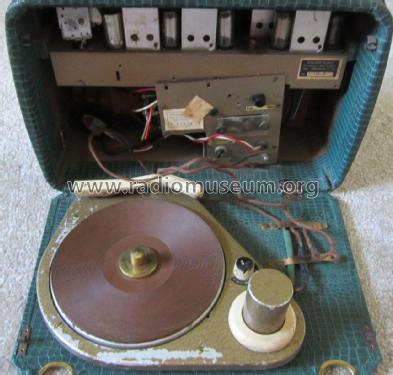

Eingebauter nach rückwärts ausschwenkbarer Plattenspieler (45 UpM) mit Kristalltonabnehmer.

Siehe auch Akkord Picknick ohne Chassisbezeichnung Offenbach U54, Unterschiede sind derzeit nicht bekannt.

Model page created by Martin Steyer. See "Data change" for further contributors.
