Pinguette U61

Akkord-Radio + Akkord Elektronik (Radios)

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
Akkord-Radio + Akkord Elektronik (Radios)

Year
1961/1962

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
385

Schematics

Pinguette U61; Akkord-Radio + (ID = 91942) Radio — Akkord-Radio + Pinguette U61 (3)

Pinguette U61; Akkord-Radio + (ID = 91943) Radio — Akkord-Radio + Pinguette U61 (3)

Pinguette U61; Akkord-Radio + (ID = 91944) Radio — Akkord-Radio + Pinguette U61 (3)

Pinguette U61; Akkord-Radio + (ID = 91945) Radio — Akkord-Radio + Pinguette U61 (3)

Pinguette U61; Akkord-Radio + (ID = 999184) Radio — Akkord-Radio + Pinguette U61 (1)

Pinguette U61; Akkord-Radio + (ID = 999183) Radio — Akkord-Radio + Pinguette U61 (1)

Pinguette U61; Akkord-Radio + (ID = 568939) Radio — Akkord-Radio + Pinguette U61 (1)

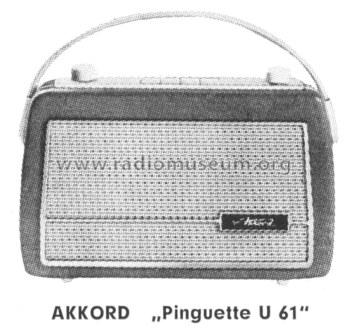

Pinguette U61; Akkord-Radio + (ID = 112069) Radio — Akkord-Radio + Pinguette U61 (2)

Pinguette U61; Akkord-Radio + (ID = 568941) Radio — Akkord-Radio + Pinguette U61 (1)

Pinguette U61; Akkord-Radio + (ID = 802540) Radio — Akkord-Radio + Pinguette U61 (1)

Pinguette U61; Akkord-Radio + (ID = 802541) Radio — Akkord-Radio + Pinguette U61 (1)

Pinguette U61; Akkord-Radio + (ID = 802542) Radio — Akkord-Radio + Pinguette U61 (1)

Pinguette U61; Akkord-Radio + (ID = 999179) Radio — Akkord-Radio + Pinguette U61 (1)

Pinguette U61; Akkord-Radio + (ID = 999180) Radio — Akkord-Radio + Pinguette U61 (1)

Pinguette U61; Akkord-Radio + (ID = 999182) Radio — Akkord-Radio + Pinguette U61 (1)

Pinguette U61; Akkord-Radio + (ID = 999185) Radio — Akkord-Radio + Pinguette U61 (1)

Pinguette U61; Akkord-Radio + (ID = 999187) Radio — Akkord-Radio + Pinguette U61 (1)

Pinguette U61; Akkord-Radio + (ID = 1145338) Radio — Akkord-Radio + Pinguette U61 (2)
Prospektbild

Pinguette U61; Akkord-Radio + (ID = 1305621) Radio — Akkord-Radio + Pinguette U61 (1)

Pinguette U61; Akkord-Radio + (ID = 1305622) Radio — Akkord-Radio + Pinguette U61 (1)

Pinguette U61; Akkord-Radio + (ID = 1840055) Radio — Akkord-Radio + Pinguette U61 (1)

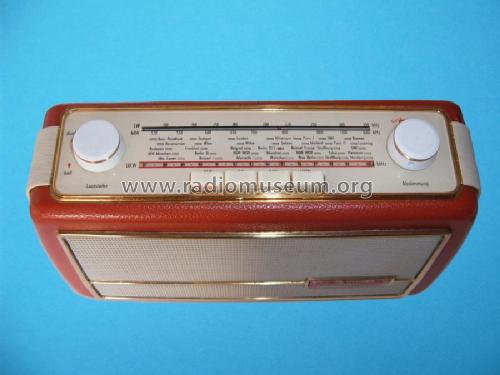

Pinguette U61; Akkord-Radio + (ID = 1840056) Radio — Akkord-Radio + Pinguette U61 (1)

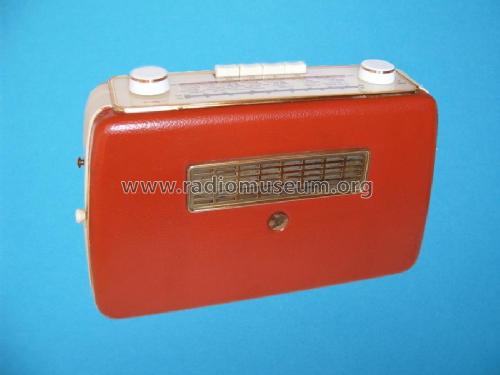

Pinguette U61; Akkord-Radio + (ID = 1840057) Radio — Akkord-Radio + Pinguette U61 (1)

Pinguette U61; Akkord-Radio + (ID = 1840058) Radio — Akkord-Radio + Pinguette U61 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
8

Semiconductors
OC615 AF105 OC170 AF105 OC71 OC75 OC74 OC74 OA172 OA172 OA90 OA90

Main principle
Superheterodyne (common); ZF/IF 455/10700 kHz

Tuned circuits
7 AM circuit(s) 9 FM circuit(s)

Wave bands
Broadcast, Long Wave and FM or UHF.

Power type and voltage
Dry Batteries / 5 × 1,5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

Power out
0.7 W (unknown quality)

Material
Leather / canvas / plastic - over other material

from Radiomuseum.org
Model: Pinguette U61 - Akkord-Radio + Akkord

Shape
Portable set > 8 inch (also usable without mains)

Dimensions (WHD)
270 x 170 x 80 mm / 10.6 x 6.7 x 3.1 inch

Notes
Ovallautsprecher (7 x 26 cm). Koaxanschluß für Autobetrieb.

Net weight (2.2 lb = 1 kg)
2.5 kg / 5 lb 8.1 oz (5.507 lb)

Price in first year of sale
269.00 DM

Source of data
HdB d.Rdf-& Ferns-GrH 1961/62 / Radiokatalog Band 1, Ernst Erb
