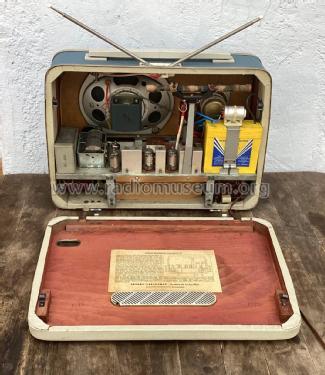

Transola Lux 59 609/1700; Akkord-Radio + (ID = 69127) Radio
Akkord-Radio +: Transola Lux 59 609/1700 [Radio] ID = 69127 908x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transola Lux 59 609/1700, Akkord-Radio + Akkord Elektronik (Radios)

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: DF97 DK96 DF97 DF97 DF97
Semiconductors (the count is only for transistors) 5: TF65 TF65 TF77 TF77 TF77
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Line / Storage batteries (perhaps also batteries) / 110; 125; 155; 220; 240 / DEAC 5/D 1,5 Ah; 6; 12 Volt
Loudspeaker 2 Loudspeakers
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: Transola Lux 59 609/1700 - Akkord-Radio + Akkord
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 380 x 295 x 155 mm / 15 x 11.6 x 6.1 inch
Notes

Eingebauter 6 V 1,5 Ah DEAC-Heizakku, aus dem Netz wiederaufladbar, erzeugt über Transistor-Inverter auch die Anodenspannung. Anschluss für ext. Stromversorgung 6 oder 12 Volt (Autobatterie).

Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Price in first year of sale 439.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1959/60 / Radiokatalog Band 1, Ernst Erb
Mentioned in Handbuch RFP 1959/60 (Thiele, Helmstedt)
Literature/Schematics (1) -- Original-techn. papers.
Literature/Schematics (2) -- Original prospect or advert (Akkord Prospekt ca.1959 "Kofferempfänger für Heim-Auto-Camping")
