402D

402D; Albis, Albiswerke AG (ID = 16063) Radio

402D; Albis, Albiswerke AG (ID = 16064) Radio

402D; Albis, Albiswerke AG (ID = 16065) Radio

402D; Albis, Albiswerke AG (ID = 16127) Radio
402D; Albis, Albiswerke AG (ID = 708812) Radio
Use red slider bar for more.
402D; Albis, Albiswerke AG (ID = 708812) Radio
Albis, Albiswerke AG: 402D [Radio] ID = 708812 700x477
Select picture or schematic to display from thumbnails on the right and click for download.
For model 402D, Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden:
Bild zum gleich aussehenden Modell automatisch kopiert statt wie bisher verknüpft (05.Jan.2010 EE).

Country:  Switzerland
Manufacturer / Brand:  Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 ECL11 AZ11 EM11
Main principle Superheterodyne (common); ZF/IF 471 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Wired Wireless Receiver(AF only)
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 402D - Albis, Albiswerke AG Siemens
Material Wooden case
Dimensions (WHD) 490 x 220 x 282 mm / 19.3 x 8.7 x 11.1 inch
Price in first year of sale 355.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

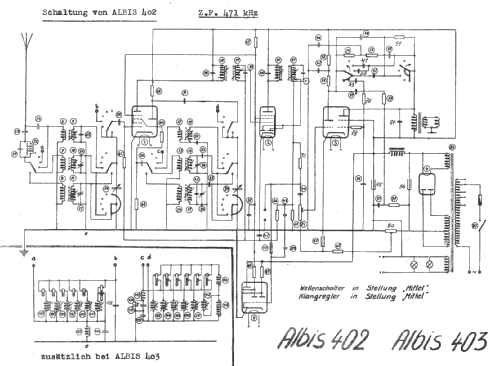

Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden
Here you find 168 models, 139 with images and 141 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
