412

412; Albis, Albiswerke AG (ID = 16132) Radio

412; Albis, Albiswerke AG (ID = 16134) Radio

412; Albis, Albiswerke AG (ID = 16135) Radio
412; Albis, Albiswerke AG (ID = 1319) Radio 412; Albis, Albiswerke AG (ID = 428154) Radio
412; Albis, Albiswerke AG (ID = 428155) Radio 412; Albis, Albiswerke AG (ID = 428156) Radio
Use red slider bar for more.
412; Albis, Albiswerke AG (ID = 1319) Radio
Albis, Albiswerke AG: 412 [Radio] ID = 1319 700x477
Select picture or schematic to display from thumbnails on the right and click for download.
For model 412, Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden

Country:  Switzerland
Manufacturer / Brand:  Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH11 EBF11 ECL11 AZ11
Main principle Superheterodyne (common); ZF/IF 471 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 412 - Albis, Albiswerke AG Siemens
Material Bakelite case
Dimensions (WHD) 490 x 218 x 293 mm / 19.3 x 8.6 x 11.5 inch
Price in first year of sale 275.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

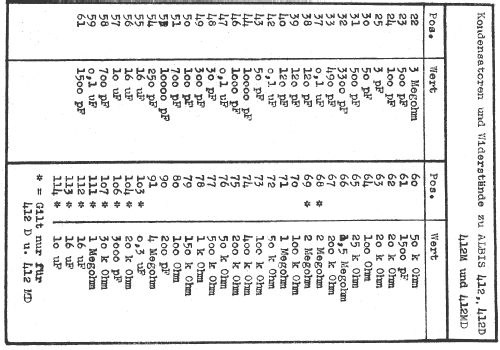

Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden
Here you find 165 models, 134 with images and 136 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
