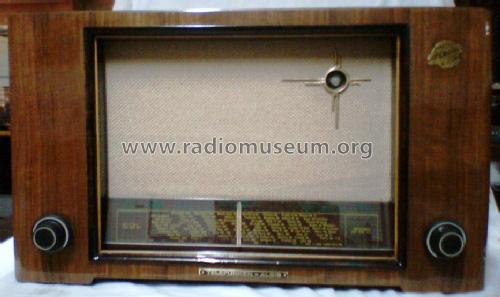

412M; Albis, Albiswerke AG (ID = 1157721) Radio 412M; Albis, Albiswerke AG (ID = 1159709) Radio
412M; Albis, Albiswerke AG (ID = 1159710) Radio 412M; Albis, Albiswerke AG (ID = 1159712) Radio
Use red slider bar for more.
412M; Albis, Albiswerke AG (ID = 1320) Radio
Albis, Albiswerke AG: 412M [Radio] ID = 1320 700x477
Select picture or schematic to display from thumbnails on the right and click for download.
For model 412M, Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden

Country:  Switzerland
Manufacturer / Brand:  Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 ECL11 AZ11 EM11
Main principle Superheterodyne (common); ZF/IF 471 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 412M - Albis, Albiswerke AG Siemens
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 490 x 282 x 218 mm / 19.3 x 11.1 x 8.6 inch
Price in first year of sale 295.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
