413; Albis, Albiswerke AG (ID = 1321) Radio

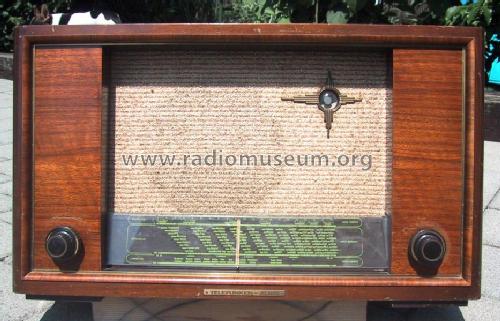

Albis, Albiswerke AG: 413 [Radio] ID = 1321 700x477
Select picture or schematic to display from thumbnails on the right and click for download.
For model 413, Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden

Country:  Switzerland
Manufacturer / Brand:  Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner

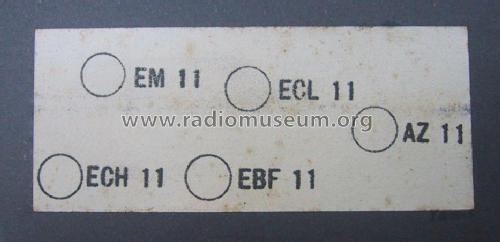

Valves / Tubes 5: ECH11 EBF11 ECL11 AZ11 EM11
Main principle Superheterodyne (common); ZF/IF 471 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 413 - Albis, Albiswerke AG Siemens
Material Wooden case
Dimensions (WHD) 528 x 235 x 311 mm / 20.8 x 9.3 x 12.2 inch
Price in first year of sale 350.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
