414D

414D; Albis, Albiswerke AG (ID = 16149) Radio

414D; Albis, Albiswerke AG (ID = 16150) Radio

414D; Albis, Albiswerke AG (ID = 16151) Radio

414D; Albis, Albiswerke AG (ID = 16152) Radio
414D; Albis, Albiswerke AG (ID = 154419) Radio 414D; Albis, Albiswerke AG (ID = 154420) Radio
414D; Albis, Albiswerke AG (ID = 708818) Radio
Use red slider bar for more.
414D; Albis, Albiswerke AG (ID = 154419) Radio
Albis, Albiswerke AG: 414D [Radio] ID = 154419 933x566
Select picture or schematic to display from thumbnails on the right and click for download.
For model 414D, Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden

Country:  Switzerland
Manufacturer / Brand:  Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH11 EBF11 EF11 EL11 EM11 AZ11
Main principle Superheterodyne (common); ZF/IF 471 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Wired Wireless Receiver(AF only)
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 414D - Albis, Albiswerke AG Siemens
Material Wooden case
Dimensions (WHD) 650 x 256 x 362 mm / 25.6 x 10.1 x 14.3 inch
Price in first year of sale 525.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

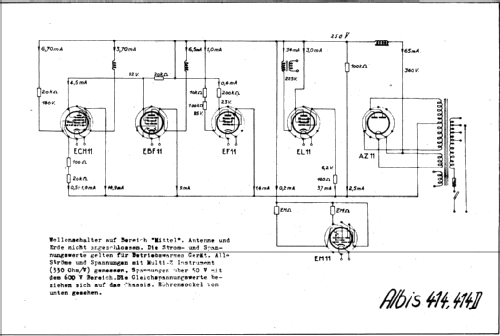

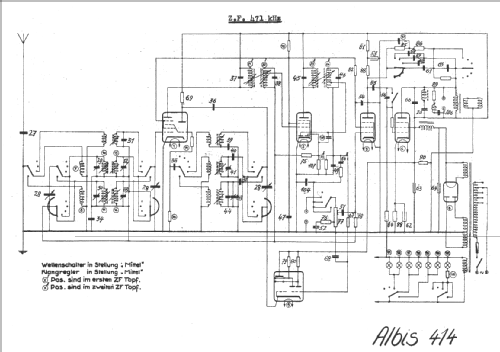

Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden
Here you find 165 models, 134 with images and 136 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
