432

432; Albis, Albiswerke AG (ID = 16279) Radio

432; Albis, Albiswerke AG (ID = 16280) Radio

432; Albis, Albiswerke AG (ID = 16281) Radio
432; Albis, Albiswerke AG (ID = 619322) Radio 432; Albis, Albiswerke AG (ID = 619323) Radio
432; Albis, Albiswerke AG (ID = 619324) Radio
Use red slider bar for more.
432; Albis, Albiswerke AG (ID = 619322) Radio
Albis, Albiswerke AG: 432 [Radio] ID = 619322 933x624
Select picture or schematic to display from thumbnails on the right and click for download.
For model 432, Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden:
Aus der Sammlung von Mario Knecht, CH-8222 Beringen

Country:  Switzerland
Manufacturer / Brand:  Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden
Year: 1942/1943 Category: Broadcast Receiver - or past WW2 Tuner

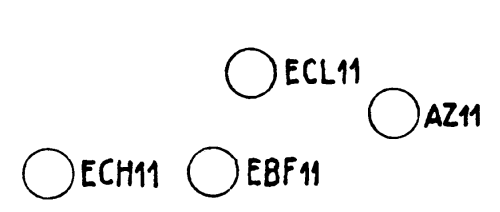

Valves / Tubes 4: ECH11 EBF11 ECL11 AZ11
Main principle Superheterodyne (common); ZF/IF 471 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 432 - Albis, Albiswerke AG Siemens
Material Wooden case
Dimensions (WHD) 492 x 218 x 284 mm / 19.4 x 8.6 x 11.2 inch
Price in first year of sale 370.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
