493

493; Albis, Albiswerke AG (ID = 16411) Radio

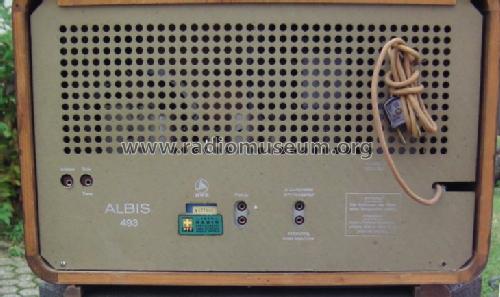

493; Albis, Albiswerke AG (ID = 665067) Radio 493; Albis, Albiswerke AG (ID = 665068) Radio
493; Albis, Albiswerke AG (ID = 665069) Radio 493; Albis, Albiswerke AG (ID = 665070) Radio
493; Albis, Albiswerke AG (ID = 665072) Radio 493; Albis, Albiswerke AG (ID = 665759) Radio
493; Albis, Albiswerke AG (ID = 1917889) Radio
Use red slider bar for more.
493; Albis, Albiswerke AG (ID = 665067) Radio
Albis, Albiswerke AG: 493 [Radio] ID = 665067 764x509
Select picture or schematic to display from thumbnails on the right and click for download.
For model 493, Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden

Country:  Switzerland
Manufacturer / Brand:  Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden
Year: 1948–1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH21 EF22 EF22 EBL21 EM4 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 471 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17.5 cm = 6.9 inch
Power out
from Radiomuseum.org Model: 493 - Albis, Albiswerke AG Siemens
Material Wooden case
Dimensions (WHD) 530 x 353 x 235 mm / 20.9 x 13.9 x 9.3 inch
Notes KW-Lupe (frz. " Vernier électrique" ). Thermosicherung.
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Price in first year of sale 625.00 SFr
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
