• Year
  • 1949/1950
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 11238

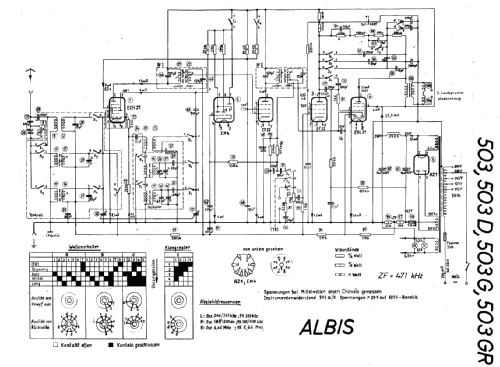

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 471 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Details
  • WiredWirelessReceiver (AF or RF)
  • Power type and voltage
  • Alternating Current supply (AC) / 110-250 Volt
  • Loudspeaker
  • Presumably Dynamic Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 503D - Albis, Albiswerke AG Siemens
  • Dimensions (WHD)
  • 540 x 360 x 238 mm / 21.3 x 14.2 x 9.4 inch
  • Net weight (2.2 lb = 1 kg)
  • 12 kg / 26 lb 6.9 oz (26.432 lb)
  • Price in first year of sale
  • 645.00 SFr
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Circuit diagram reference
  • Thali-Schemasammlung und Tungsram-Röhrenbestückung.
  • Picture reference

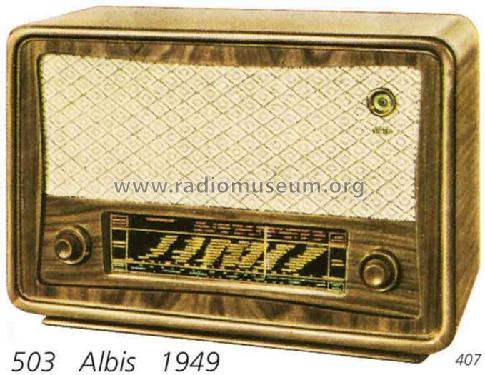

  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
